Floor Heating Mat: Complete Guide to Electric Underfloor Heating Systems
Key Takeaways
- Floor heating mats provide efficient radiant warmth through electric cables woven into mats, available in thin Under Tile and In Screed options.
- Twin cable technology delivers 150W/m² to 200W/m² output, with systems heating your floors within 1-2 hours for immediate comfort
- Floor Heating mats are amazing in bathrooms and also work really well in larger areas, offering space-saving solutions with even heat distribution and mould prevention.
- Running costs depend on electricity tariffs and heating area size, but as a general rule can be calculated at 2c per m2 per hour. (Depending on insulation, tariff etc)
Modern home comfort has evolved beyond traditional radiator systems, and floor heating mats represent a revolutionary approach to creating warm, comfortable living spaces. These innovative electric underfloor heating systems transform cold floors into sources of radiant warmth, providing an energy-efficient solution.
Unlike conventional heating methods that warm air first, floor heating systems work by heating the floor surface directly, then radiating that comfortable warmth upward throughout the room. This approach not only feels more natural underfoot but also creates more even temperature distribution while potentially reducing overall energy consumption.
What Are Floor Heating Mats?
Floor heating mats are sophisticated electric underfloor heating systems that use specially designed heating cables woven into self adhesive mats. These systems convert electrical energy directly into thermal energy, which radiates upward through your floor to warm the space above.
The fundamental principle behind these heating mats involves radiant heat transfer. Rather than heating air that then circulates around a room, the system heats the floor surface first. This floor then becomes a large, gentle radiator that provides consistent, comfortable warmth from the ground up. The result is a heating solution that is more comfortable than traditional forced-air systems, especially for those who love walking barefoot on warm surfaces.
Electric underfloor heating mats differ significantly from hydronic (hot water) radiant systems. While hydronic systems circulate heated water through tubing beneath the floor, electric mats use resistance heating cables that generate heat when electricity flows through them. This makes electric systems simpler to install in retrofit situations and eliminates concerns about water leaks or pressure issues.
The key advantage of mat-based systems over loose cable installations lies in their pre-manufactured nature. The heating cable arrives already spaced correctly and embedded in the mat structure, eliminating complex on-site positioning calculations and reducing installation time significantly.
Types of Floor Heating Mats
Thin Heating Mats
Thin heating mats represent the most popular choice for tile installations where maintaining existing floor heights is crucial. These systems feature a compact 3.5mm element that allows installation directly under tile adhesive without requiring additional screed layers.
Supplied at 500mm wide, these mats are designed to fit different room configurations and can be easily maneuvered around bathroom fixtures and other obstacles.
Under Tile Mats are 150W/m² output, providing perfect heat for residential applications while maintaining energy efficiency.
In-Screed Heating Mats
For applications requiring higher heat output or thermal mass benefits, in-screed heating mats operate at 200W/m² and are designed for installation within screed layers between 20mm and 50mm thickness. These systems provide superior heat storage capabilities, acting as thermal mass that continues radiating warmth even after the system cycles off.
The higher power output makes these systems suitable for high heat loss applications such as poorly insulated floors or rooms with significant glazing. The screed acts as a heat storage medium, gradually releasing stored thermal energy and creating more stable temperature conditions throughout the day.
These systems work exceptionally well with self-levelling compounds and accommodate various floor coverings including tiles, timber, and even carpet installations.
Benefits and Applications
Electric underfloor heating systems offer compelling advantages over traditional heating methods. Energy efficiency ranks among the primary benefits, as radiant heat feels comfortable at lower air temperatures compared to forced-air systems. This allows you to maintain comfort while potentially reducing thermostat settings.
The health benefits are particularly notable for people with circulation issues or those who simply enjoy walking barefoot. The gentle, even heat eliminates cold spots and creates a more comfortable environment for activities that involve floor contact.
In bathrooms, these systems provide crucial mould prevention benefits by quickly drying surfaces after showers and maintaining consistent temperatures that reduce condensation. This is especially valuable in climates where bathroom moisture control presents ongoing challenges.
The space-saving aspect cannot be overstated. With no visible heating elements, radiators, or ductwork, floor heating systems free up wall space for furniture placement and design flexibility. The even heat distribution across the entire floor area eliminates the hot and cold zones common with other heating solutions.
Installation Methods

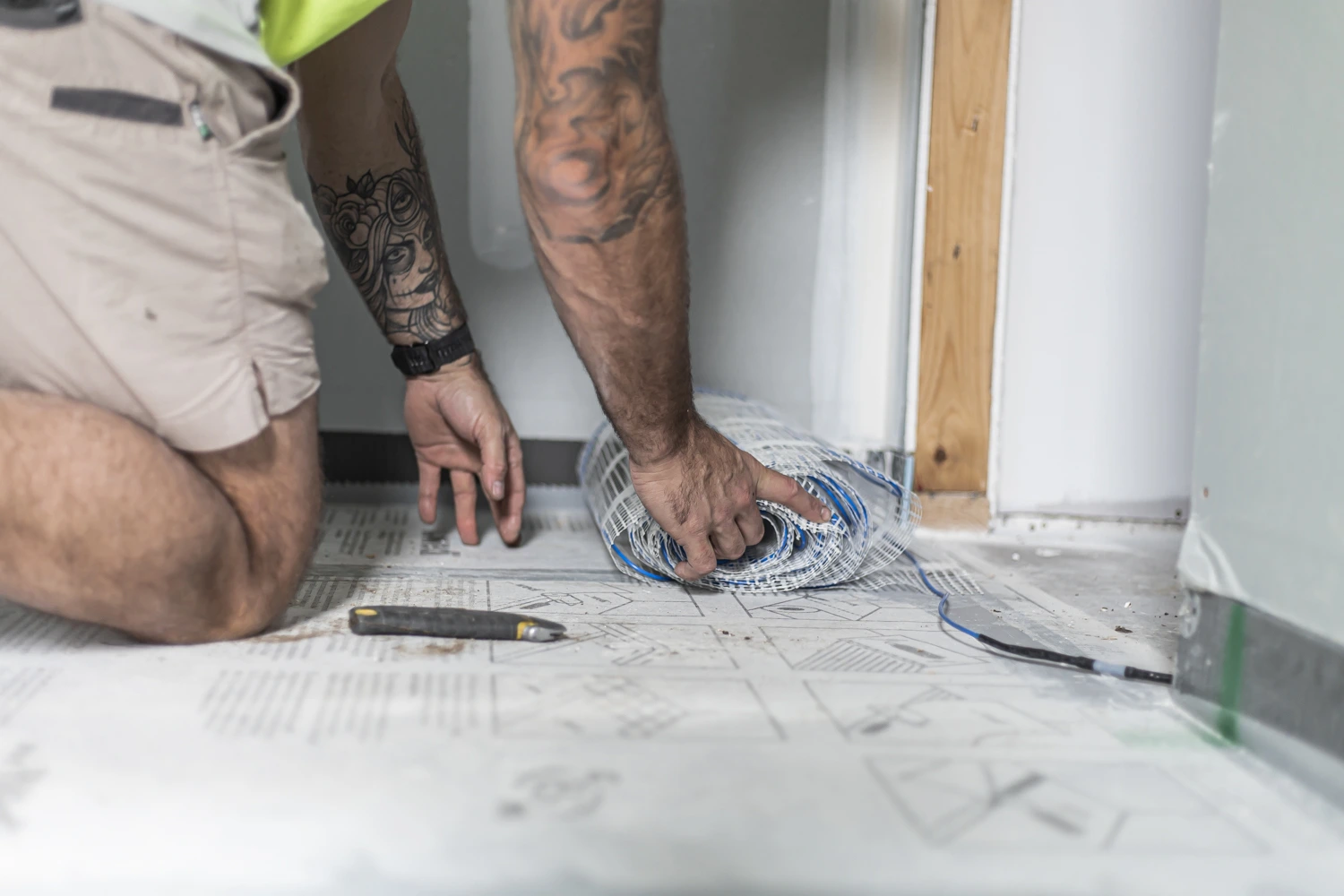

Bathroom Installations
Bathroom installations require careful coordination with your build or renovation. The heating mat is typically installed after waterproofing.
The mats prove particularly valuable in small bathrooms where maneuvering around toilets, vanities, and shower bases requires precision.
Installation begins with ensuring the subfloor is clean, level, and properly waterproofed. The mat is then positioned using the chosen fixing method, with particular attention paid to maintaining proper spacing around fixtures and ensuring the heating cable remains undamaged during the process.
Coordination with tiling work is essential, as the mat must be completely covered by tile adhesive to ensure proper heat transfer and prevent hot spots. The cold tail connections extend to a suitable location for thermostat connection, typically requiring conduit installation for protection and code compliance.
Technical Specifications
TwistedTwin cable technology represents a significant advancement in electric underfloor heating design. This technology eliminates electromagnetic fields (EMF) by using a twin cable configuration where electrical currents flow in opposite directions, canceling each other’s magnetic fields.
Floor temperature regulation maintains an even floor temperature when used with proper floor sensing thermostats.
Hotwire systems operate on 230V power supply with 3m cold tail lengths providing flexibility for electrical connections. The cold tail is the unheated portion of the cable that connects the heating area to the power supply, allowing the thermostat and electrical connections to be positioned away from the heated zone.
Floor temperature regulation maintains an even floor temperature when used with proper floor sensing thermostats.
Hotwire systems operate on 240V power supply with 3m cold tail lengths providing flexibility for electrical connections. The cold tail is the unheated portion of the cable that connects the heating area to the power supply, allowing the thermostat and electrical connections to be positioned away from the heated zone.
Cost Considerations
Running cost calculations depend on several factors including local electricity tariffs, heating area size, insulation quality, and usage patterns.
Heat storage benefits of screed systems can actually reduce running costs despite their higher initial power consumption. The thermal mass stores heat during operation and continues radiating warmth during off cycles, reducing the system’s duty cycle and overall energy consumption.
The price range for complete systems varies significantly based on size and specifications, but the long-term value includes not just operational savings but also increased property value and improved comfort that’s difficult to quantify in pure financial terms.
Electrical Requirements and Safety
Floor Heating must be installed in Australia by fully qualified electricians.
AS/NZ3000:2000 compliance ensures installations meet current electrical safety standards. This standard covers proper circuit protection, grounding requirements, and installation practices that protect both the system and building occupants.
Conduit installation protects the cold tail cables during construction and provides long-term protection against damage. The conduit route should be planned to minimize the number of bends while providing the most direct path to the electrical panel location.
Programmable thermostat options offer sophisticated temperature control with features like multiple daily programs, remote monitoring, and integration with home automation systems. These advanced controls can improve both comfort and efficiency when properly configured.
Choosing the Right System
Size calculations start with accurate room measurements and consideration of furniture placement. Systems are available in a wide range of sizes allowing precise matching to specific room requirements.
Floor covering compatibility varies by system type. Tiles work with virtually all systems, timber flooring requires careful temperature management, and carpet installations need appropriate insulation considerations to ensure effective heat transfer without creating safety concerns.
Choosing between In Screed and Under Tile Heating will depend on how you are constructing your bathroom.
Warranty and Quality Assurance
Hotwire offers a Lifetime warranty on the Heating Element (conditions apply) and a two year warranty on the Thermostat.
Hotwire has a 4.9 star rating on Google and has more reviews than any other floor heating company in Australia.
FAQ
Can I install floor heating mats under any type of flooring?
Floor heating mats are compatible with tiles, timber, vinyl, and carpet, but compatibility varies by system type. Tile installations work with all mat types, including thin 3.5mm systems installed directly under tile adhesive. Timber flooring requires careful temperature control – specialized low-temperature systems prevent wood warping and damage. Carpet installations need proper insulation underneath for effective heat transfer, and the total floor covering thickness affects heating efficiency. Vinyl flooring generally works well with thin heating mats, but check manufacturer specifications for maximum temperature ratings to prevent material damage.
How long does it take for floor heating mats to warm up a room?
Floor heating systems typically heat the floor surface within 1-2 hours, but room warming time depends on several factors. The floor material affects warm-up speed – tiles heat quickly but require more energy, while timber takes longer to warm but retains heat longer. Room insulation quality dramatically impacts heating time, with well-insulated rooms warming 2-3 times faster than poorly insulated spaces. Screed systems with thermal mass take longer initially but provide more stable temperatures once warmed. For optimal performance, run the system consistently rather than trying to heat cold rooms quickly.
What’s the difference between 150W/m² and 200W/m² heating mats?
Simply put, 150w mats are used Under Tile and 200w mats are used for In Screed applications.
Do floor heating mats require professional installation or can I do it myself?
All floor heating in Australia must be installed by an electrician.
How much does it cost to run floor heating mats compared to traditional heating?
Running costs depend on electricity tariffs, heating area size, and insulation quality. As a general rule Hotwire floor heating costs 2c per m2 per hour. This depends on insulation etc.
