controllers and thermostats

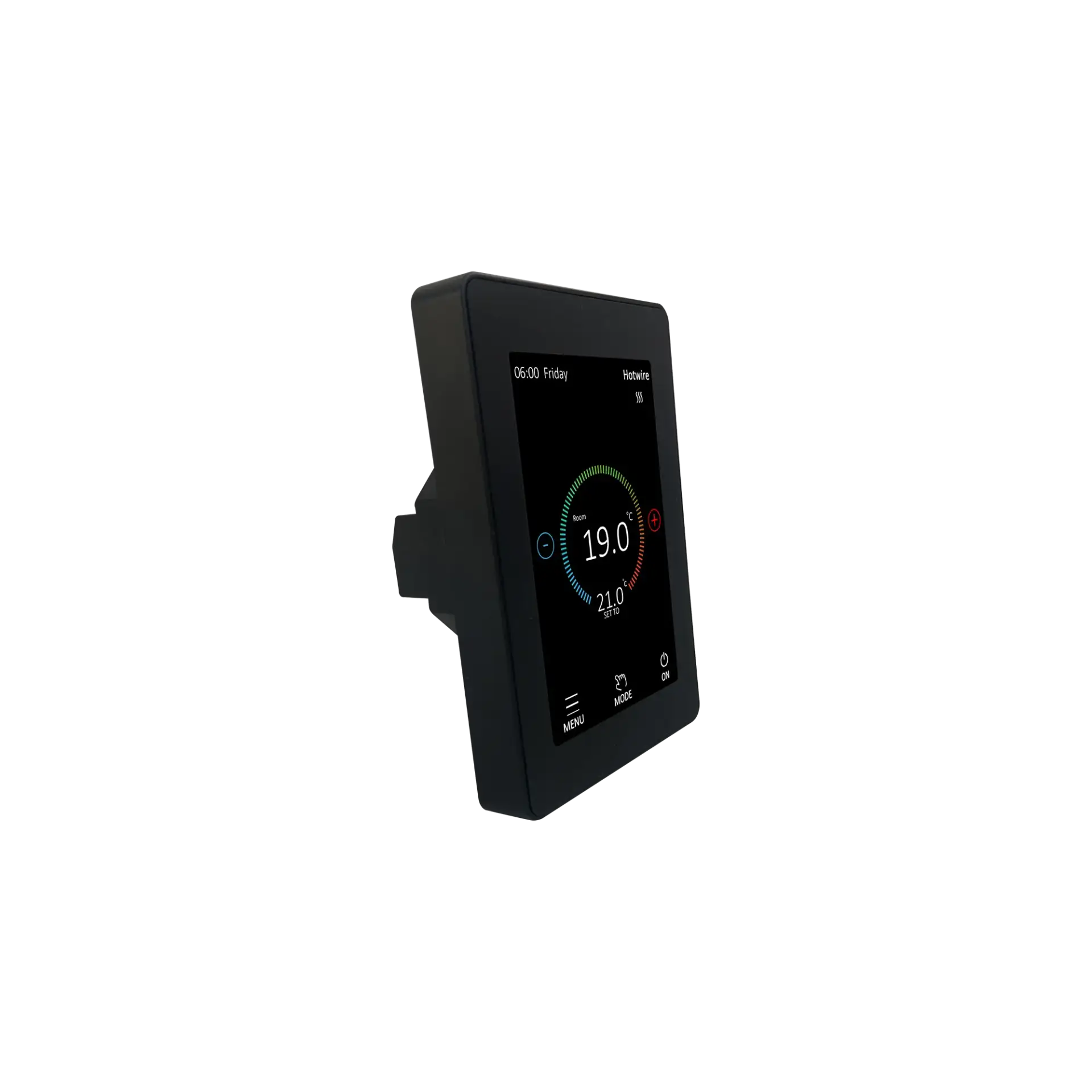

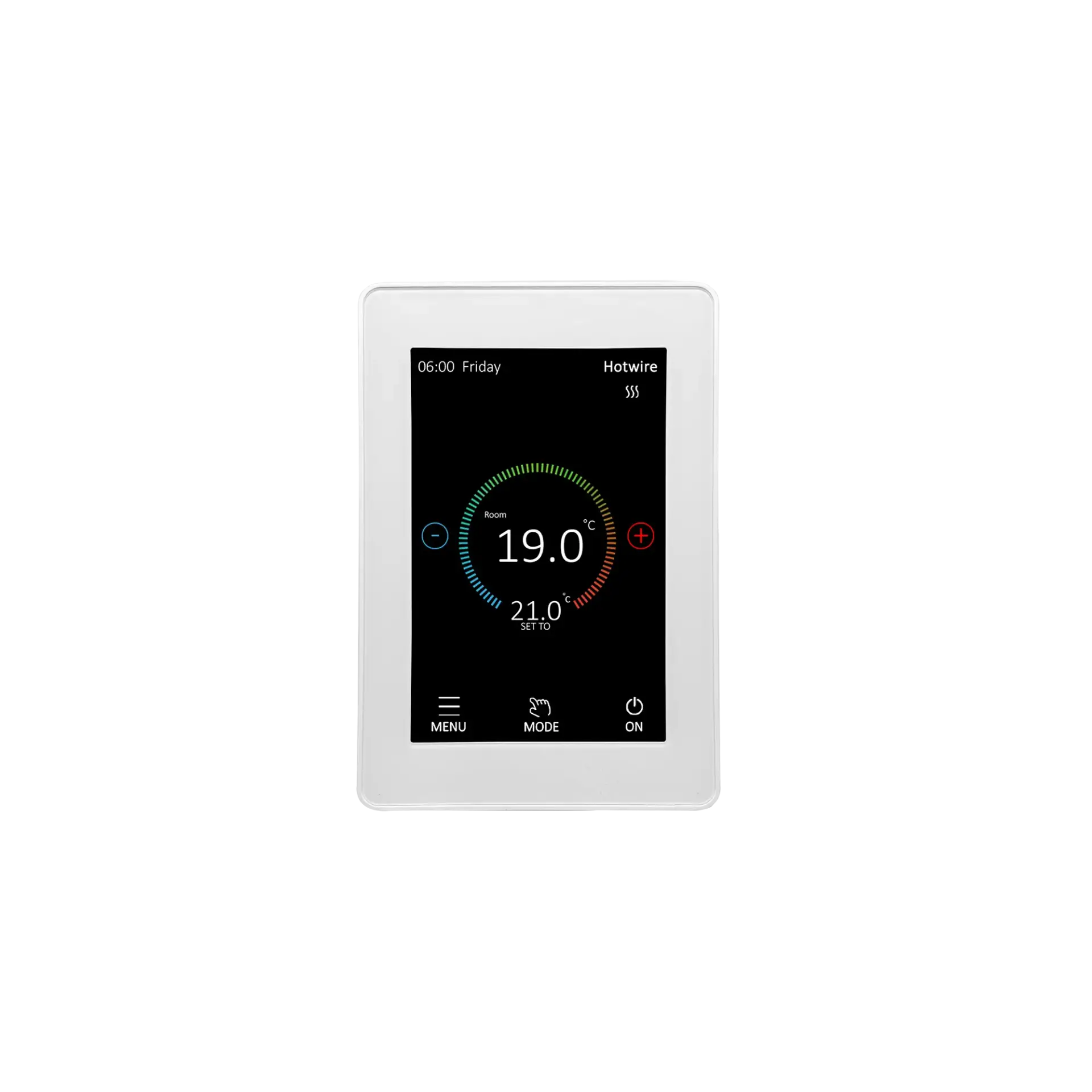

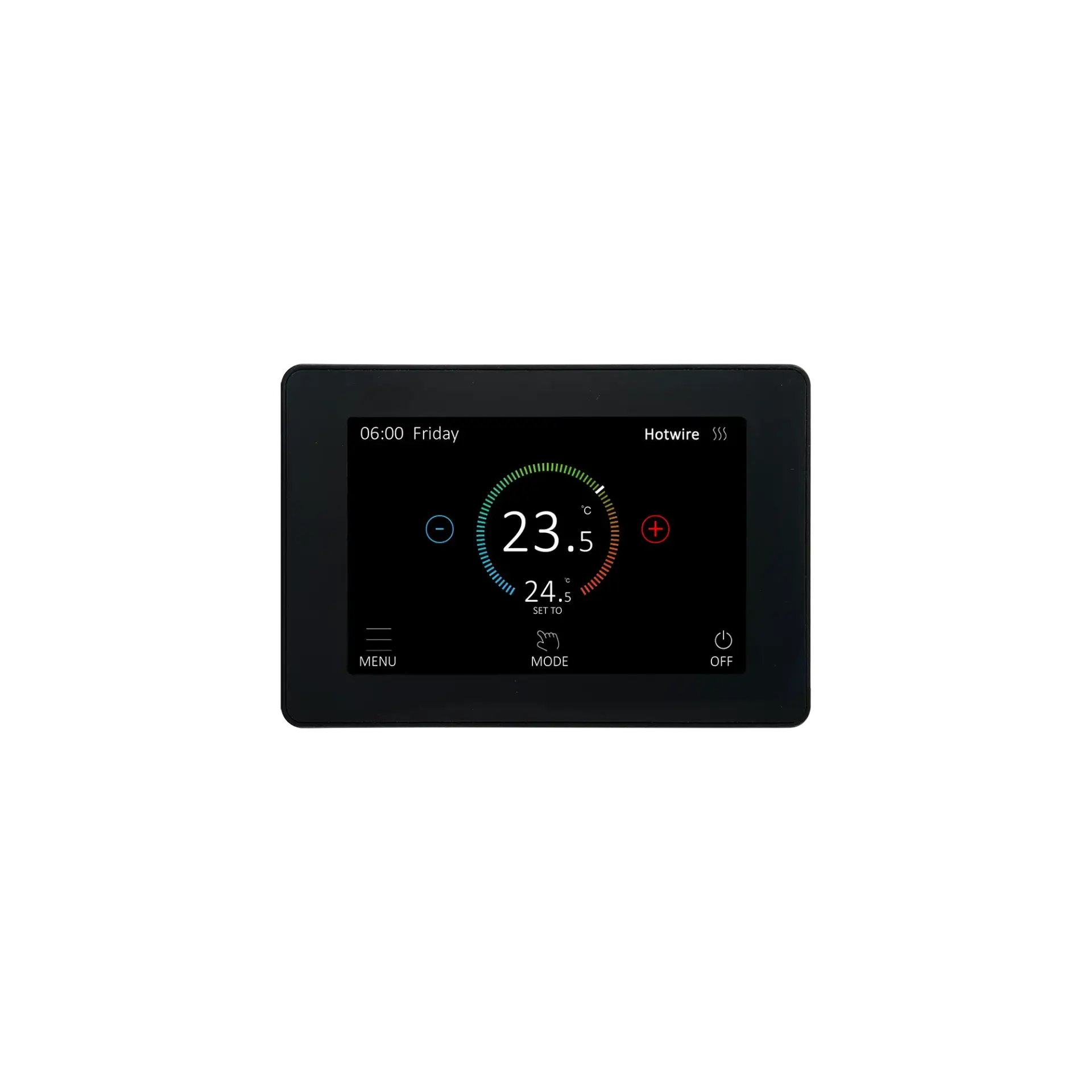

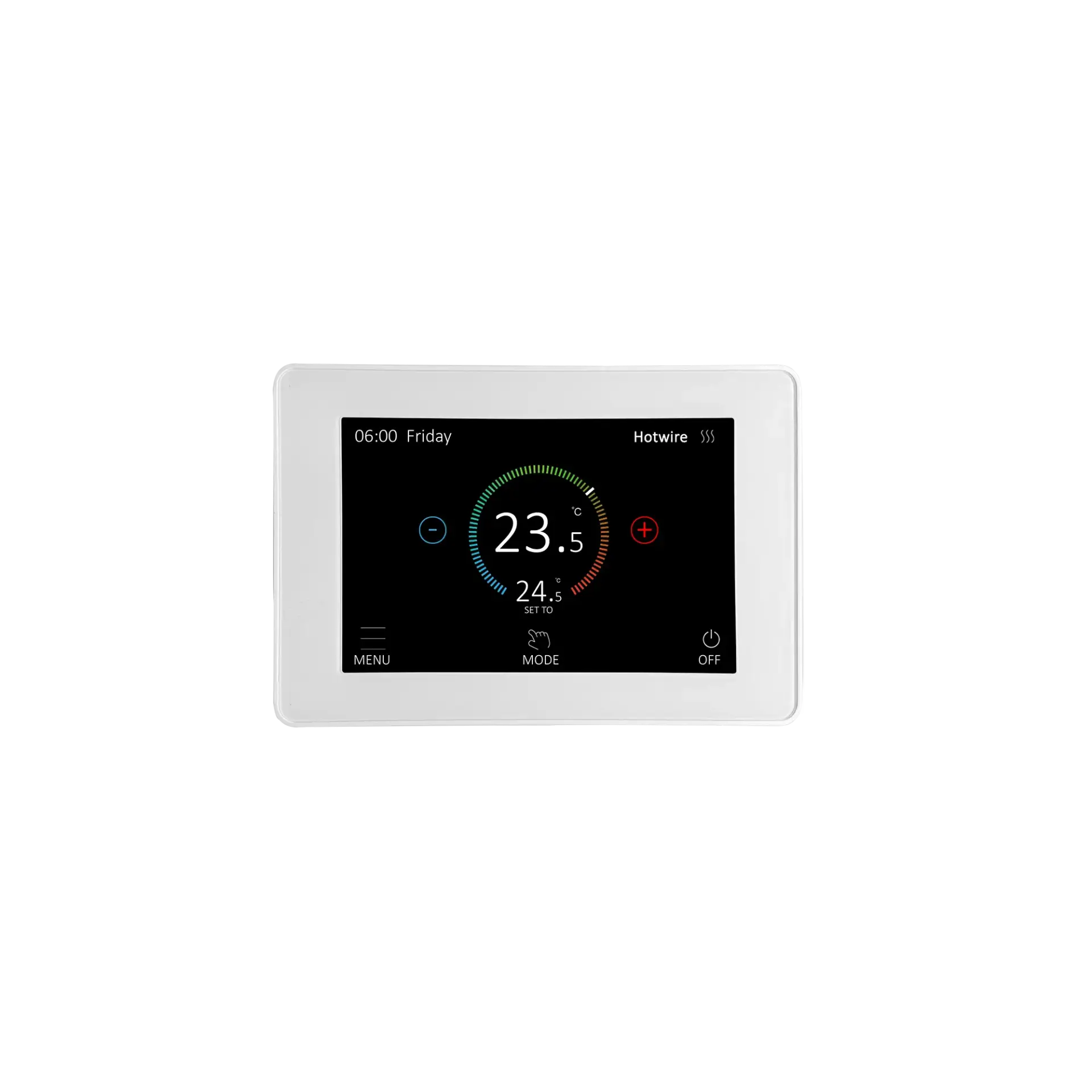

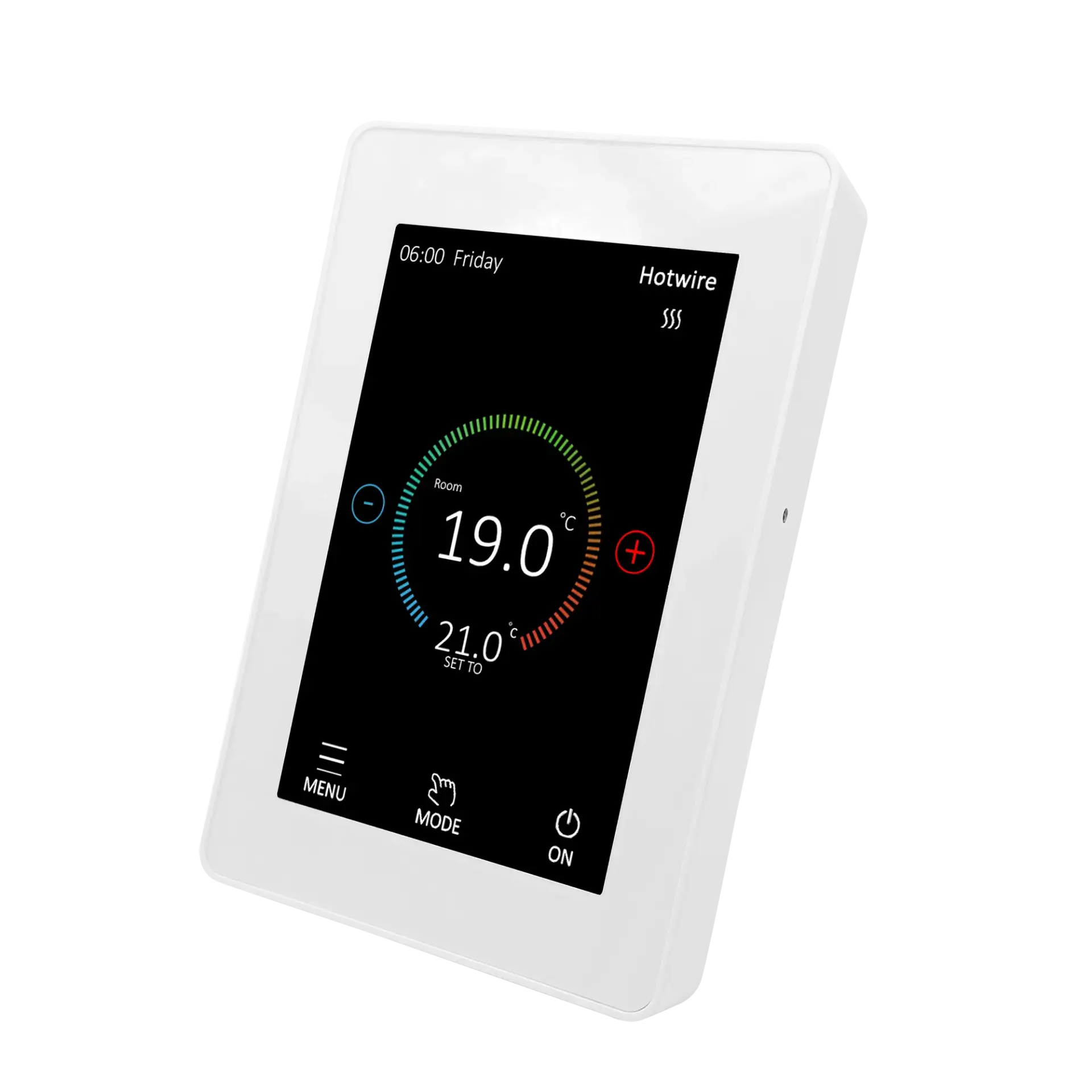

HWTS1 Touchscreen Thermostat
The HWTS1 from Hotwire is our latest release Floor Heating Thermostat. It is the standard model in all Hotwire floor heating systems. It is fully programmable 24/7 and can be set horizontally or vertically through the menu. It is simple to operate, intuitive and beautiful.
Key Features
Full Touchscreen Control
A clean, modern interface that enables you to easily program your thermostat around your lifestyle at the touch of a button.
Flexible Programming Modes
Choose 7-day, 5+2-day, or daily custom schedules. The thermostat supports Manual, Auto, and Holiday modes for complete comfort control.
Dual Sensor Compatibility
Use Air or Floor sensor for the most accurate and precise temperature control.
| Specification | Details |
|---|---|
| Product Name | HWTS1 Thermostat |
| Description | Touchscreen thermostat designed for reliable, programmable underfloor heating control. Supports Air, Floor, and Combined sensing with flexible scheduling options. |
| Voltage | 110 to 230 V AC, 50/60 Hz |
| UFH Relay | Max 16 A (resistive load) |
| Floor Sensor Types | Compatible with 3K, 5K, 6.8K, 10K (default), 12K, 15K, 20K, 22K, 33K, 47K, 50K, 100K |
| Temperature Range |
Room Temperature: 5 to 60 °C Floor Temperature Limit: 5 to 60 °C |
| On/Off Differential | ±0.5, 1, 2, or 3 °C |
| Storage Temperature | −10 to 50 °C |
| IP Rating | IP21 |
| Programming Options |
7-day, 5+2-day, or individual daily scheduling Manual, Auto, and Holiday Modes |
| Sensor Modes | Air-only, Floor-only, or Combined |
| Mounting | Vertical or horizontal installation |
| Colour Variants | White (standard); Black and Silver available |
