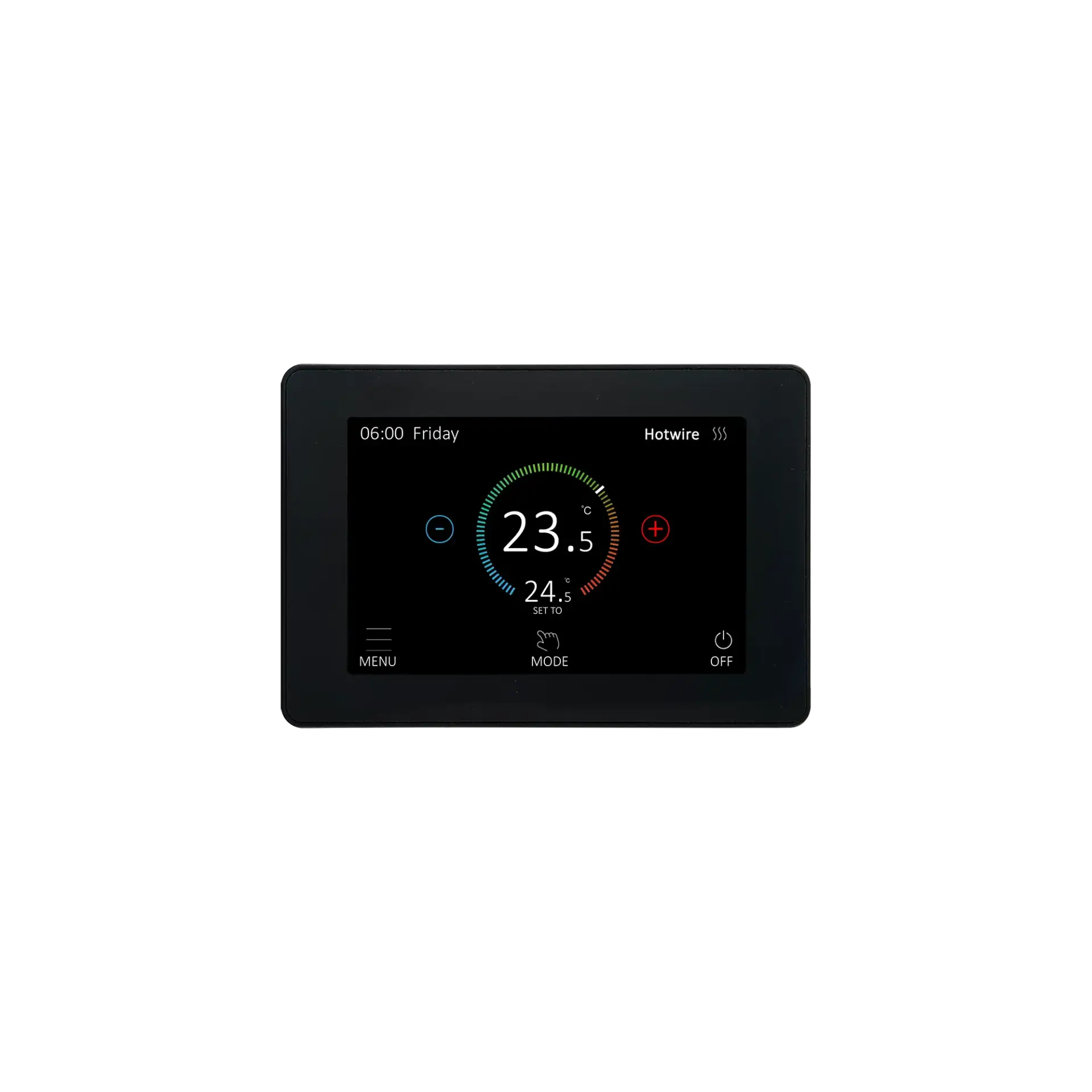

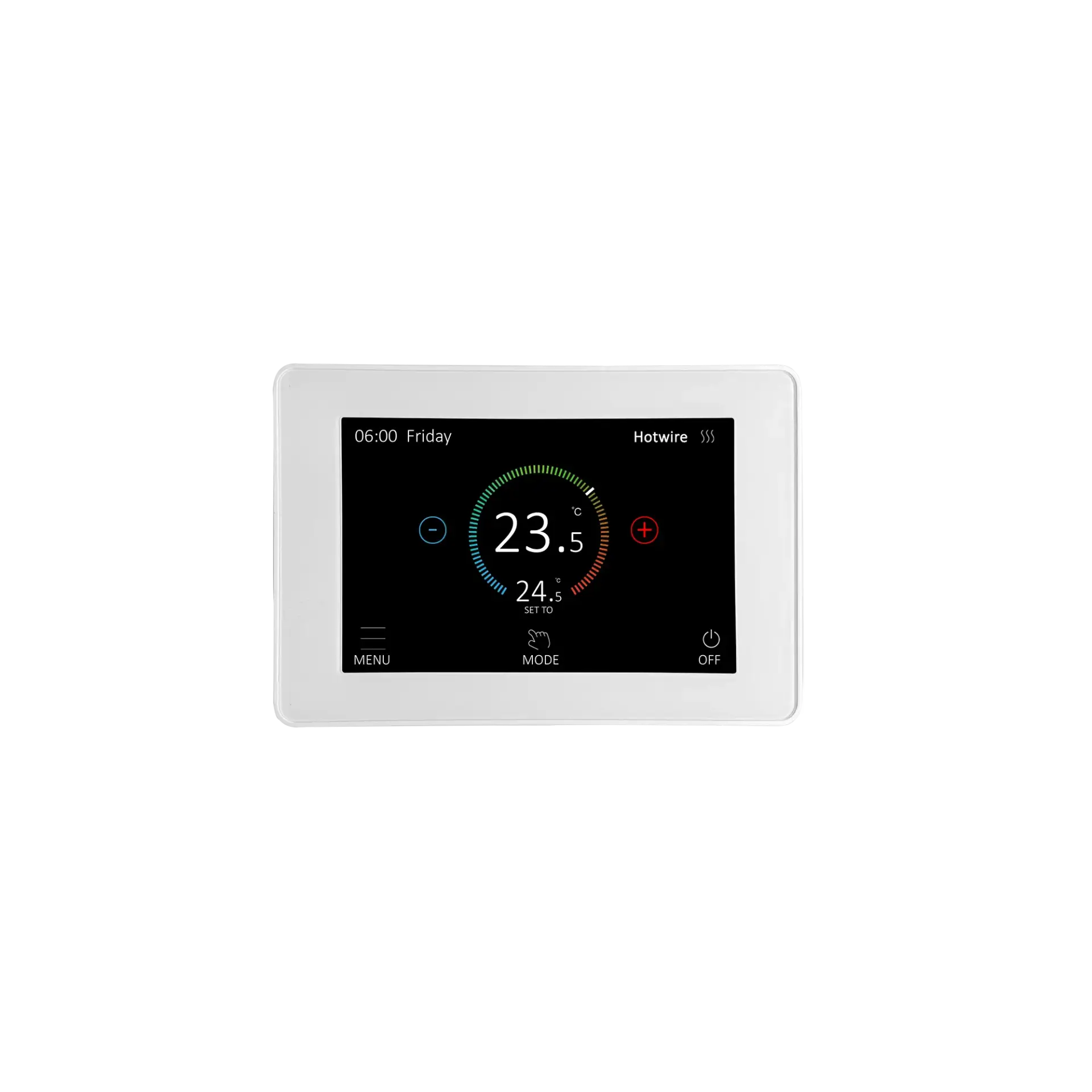

HWTS1 DUAL Touchscreen Thermostat
The HWTS1 Dual from Hotwire is our latest release Thermostat. The Dual Thermostat can control your Hotwire Floor Heating and Heated Towel Rail on seperate schedule. It is fully programmable 24/7 and can be set horizontally or vertically through the menu. It is simple to operate, intuitive and beautiful.
Key Features
Dual-Zone Heating Control
Manage your underfloor heating and heated towel rail from one elegant interface. Each output is independently controlled, allowing you to customise comfort and energy use across both zones with absolute precision.
Advanced Scheduling
Choose from 7-day, 5+2-day, or fully custom daily schedules to tailor heating and towel rail timings exactly to your routine. Automatic, Manual, and Holiday modes provide flexibility for every lifestyle.
Smart Sensing Temperature Accuracy
The Floor Heating mode supports Air and Floor sensing, and the Heated Towel Rail mode supports both Low Voltage and 230v Heated Towel Rails.
| Specification | Details |
|---|---|
| Product Name | HWTS1 DUAL Thermostat |
| Description | Dual-output touchscreen thermostat designed to control both underfloor heating and heated towel rails. Offers flexible scheduling, Air and Floor sensing, and vertical or horizontal orientation. |
| Voltage | 110 to 230 V AC, 50/60 Hz |
| Relays |
Max 16 A (resistive load) for Floor Heating Max 10 A (resistive load) for Heated Towel Rail |
| Floor Sensor Types | Compatible with 3K, 5K, 6.8K, 10K (default), 12K, 15K, 20K, 22K, 33K, 47K, 50K, 100K |
| Temperature Range |
Room Temperature: 5 to 60 °C Floor Temperature Limit: 5 to 60 °C |
| On/Off Differential | ±0.5, 1, 2, or 3 °C |
| Storage Temperature | −10 to 50 °C |
| IP Rating | IP21 |
| Programming Options |
7-day, 5+2-day, or individual daily scheduling Manual, Auto, and Holiday Modes |
| Sensing Modes | Air and Floor sensing |

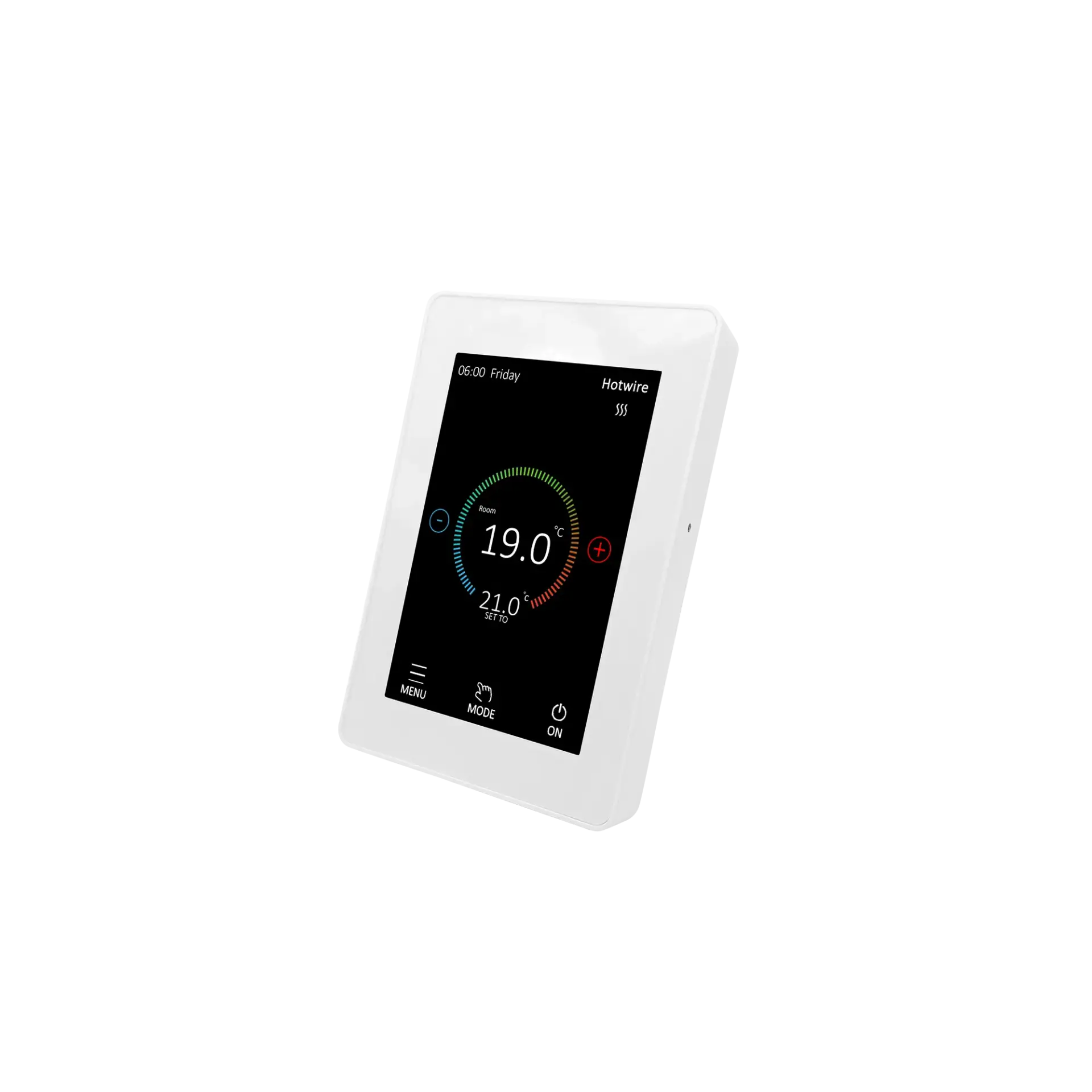

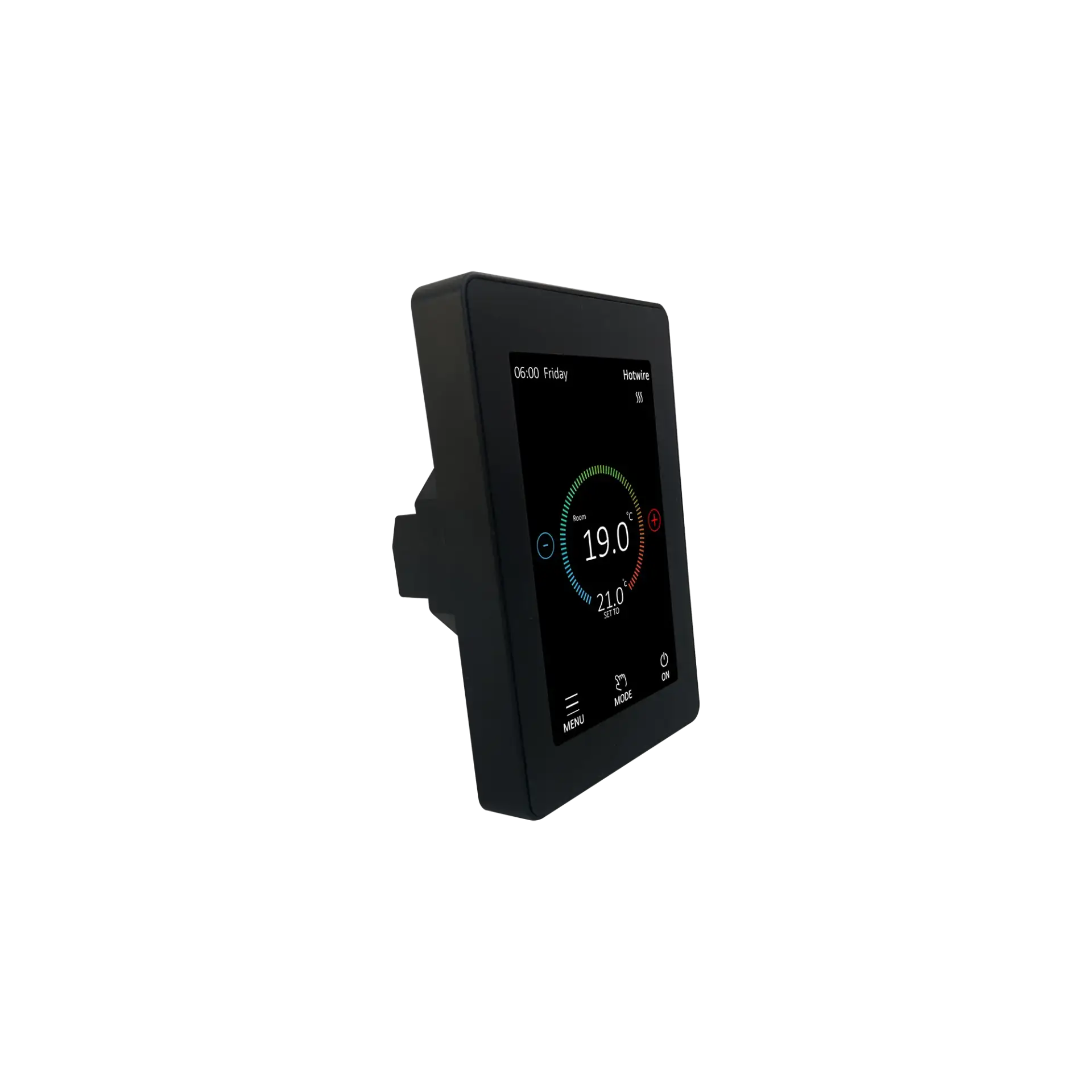

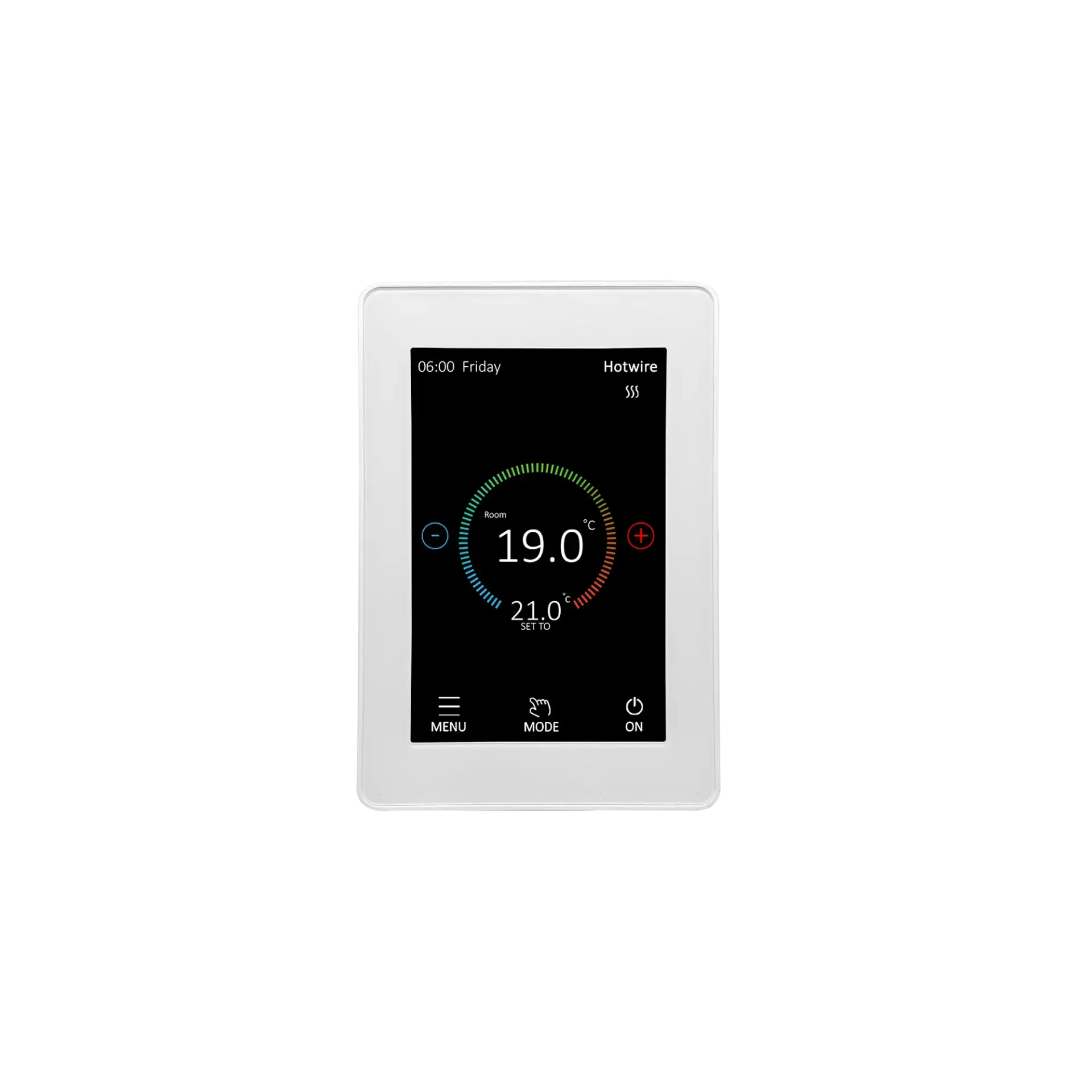

| Mounting | Vertical or horizontal installation |
| Colour Variants | White (standard); Black and Silver available |
